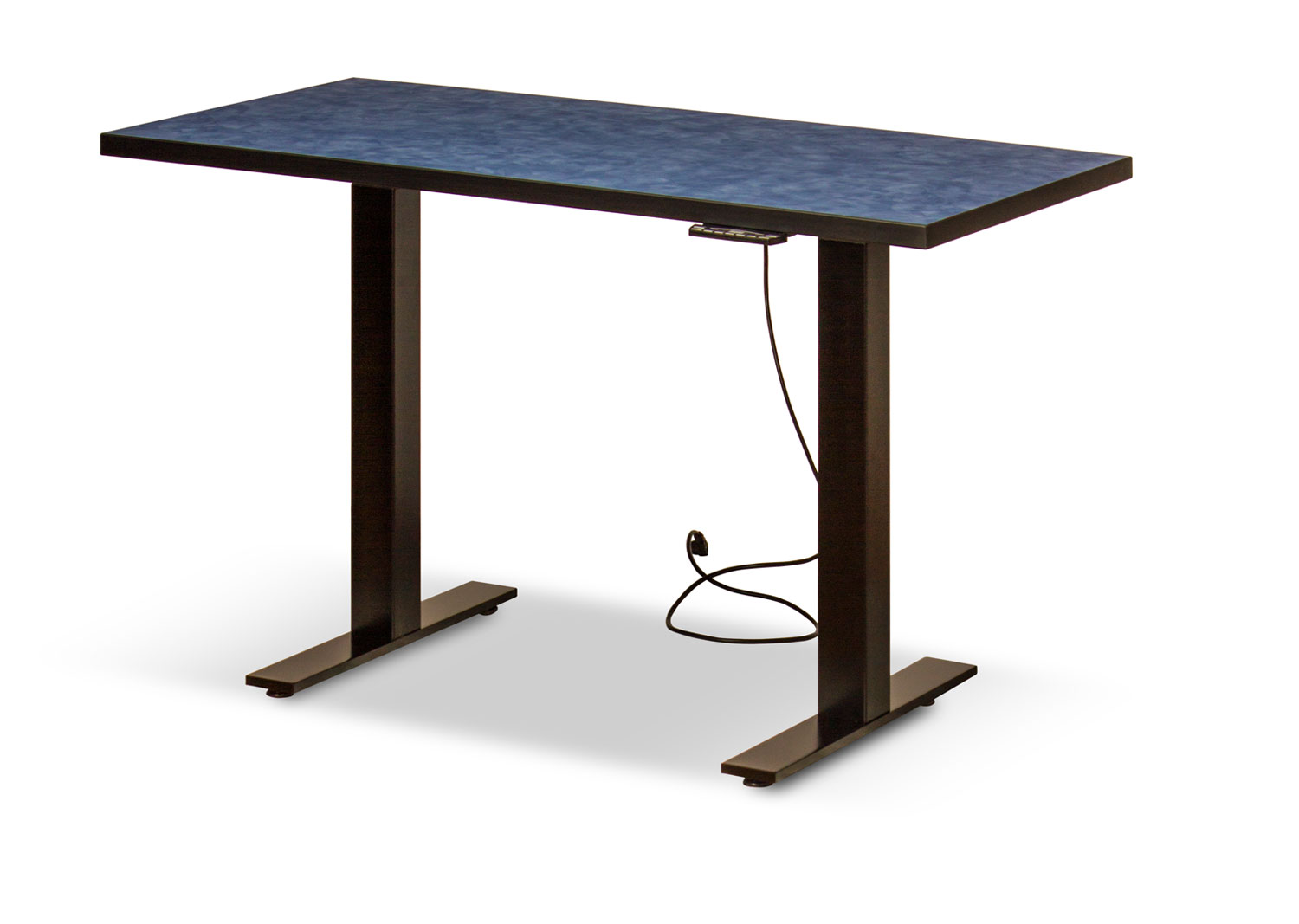

Elevate Electric




Features/Options

  • 1PW Our “Best” version which features twin motors (one in each leg) and a programmable keypad (retractable beneath work-surface) that may be keyed with indefinite stops for up to 5 users. Maximum load 300 lbs. Available in P80 base (silver) or P40 base (black). May be ordered with a top (any WilsonArt laminate!) or without a top and just the base / mechanism.
  • 2PW Our “Better” version that features twin motors (one in each leg) and may be configured with corner options. Features a built in modesty panel with wire management capability. Extension option. Maximum load 330 lbs. Available in P80 base (silver) or P40 (black). May be ordered with a top (any WilsonArt laminate!) or without a top and just the base / mechanism.
  • 3PW Our “Better” version that features twin motors (one in each leg) and may be configured with corner options. NO modesty panel but comes standard with a stable cross brace. Extension option. Maximum load 176 lbs. Available in silver only. May be ordered with a top (any WilsonArt laminate!) or without a top and just the base / mechanism.
  • 4PW Our “Good” version features one motor in one leg. Includes modesty panel which may be laminate or painted (indicate which when ordering). Maximum load 154 lbs. Available in silver only. May be ordered with a top (any WilsonArt laminate!) or without a top and just the base / mechanism.


Dimensions

  • There are FOUR Elevate Electric variants (Note: all height ranges do NOT include the top):
  • 1PW: Available in 24", 30" and 36" depths. Widths available from 42" to 84" in 6" increments. Height range motor 2 is 27-1/4" to 47” H. Height range motor 3 is 25" to 49-3/4" H.
  • 2PW: Available is 30" and 36" depths. Widths from 48" to 84" in 12" increments. Height range 24-13/16" to 47-1/4".
  • 3PW: Available in 24", 30" and 36" depths and widths from 36" to 72" in 6" increments. Height range 26" to 45-11/16".
  • 4PW: Available in 30" and 36" depths and widths from 36" to 72" in 6" increments. Height range 26" to 46-1/2".
